UCFA202-10 Flange Cartridge Bearing Unit 5/8" Bore Mounted Bearings
UCFA202-10 Flange Cartridge Bearing Unit 5/8" Bore Mounted Bearings

Our Price: $14.89
. Item: UCFA202-10 Bearing
. Type: Flange Cartridge Unit
. Basic Load (Cr): 12.8 KN
. Basic Load (Cor): 6.65 KN
. Bolt Size: 5/16"


Product Code: KIT12580
Qty:

Description

UCFA202-10 Flange Cartridge Unit
5/8" Inner Diameter


5/8 Flange Cartridge Unit UCFA202-10:vxb:Ball Bearing
5/8 Flange Cartridge Unit UCFA202-10:vxb:Ball Bearing
5/8 Flange Cartridge Unit UCFA202-10:vxb:Ball Bearing

UCFA202-10 Flange Cartridge Unit, the inner Diameter is 5/8" inch.

  • Item: UCFA202-10 Bearing
  • Type: Flange Cartridge Unit
  • Basic Load (Cr): 12.8 KN
  • Basic Load (Cor): 6.65 KN
  • Bolt Size: 5/16"
  • Bearing No: UC202-10
  • Housing No: FA204
  • Quantity: One bearing

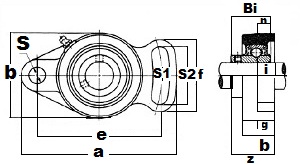

Dimensions (Inches)
a e i g S S1 S2 b f z Bi n
4-1/64" 3-1/16" 19/32" 15/32" 25/64" 25/64" 1-27/64" 2-3/8" 2-1/8" 15/16" 1-7/32" 1/2"

UCFA202-10 Flange Cartridge Bearing Unit 5/8" Bore Mounted Bearings


Kit12580
