TWD24WUU NB 1 1/2" inch Ball Bushing Open Block Linear Motion

TWD24WUU NB Systems 1 1/2" inch Ball Bushing Open Block Linear Motion

Our Price: $453.04

. Item: TWD24WUU NB Bearing
. Type: Linear ball bushing
. Shaft Diameter: 1 1/2" inch
. Quantity: One Bearing
. Dynamic load rating Cr: 2,370 LBF

Product Code: KIT8135

Qty:

Description

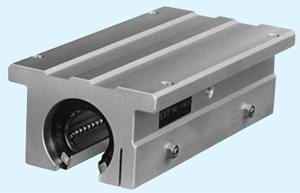

TWD24WUU NB Type:Slide Unit
Pillow Block
Made in Japan:NB Linear Systems
Nippon Bearing Linear Systems

1-1/2" Slide Unit Pillow Block (Inch Series), the innerdiameter(bore) is 1-1/2" inch dimensions with steelretainer, bearing is a high accuracy grade linear bushings,series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.

Item: TWD24WUU NB Bearing
Type: Linear ball bushing
Shaft Diameter: 1 1/2" inch
Quantity: One Bearing
Dynamic load rating Cr: 2,370 LBF
Static load rating Cor: 3,700 LBF

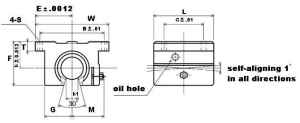

Major dimensions									Mounting dimensions
h	E	W	L	F	T	G	M	h1	B	C	S
1.75"	2.375"	4.75"	9"	2.91"	.5"	1.75"	2.12"	.681"	4.125"	6.5"	.281"

TWD24WUU NB Systems 1 1/2" inch Ball Bushing Open Block Linear Motion

Kit8135
