SVSX-M3-10-88 NBK Hex Socket Head Cap Vacuum Vented Screws with Ventilation Hole - High Intensity stainless M3 length 10mm Made in Japan
SVSX-M3-10-88-NBK Hex Socket Head Cap Screws with Ventilation Hole - High Intensity stainless M3 length 10mm

Our Price: $10.48
. Item: SVSX-M3-10-88
. Quantity: one Screw
. Brand NBK
. Made in Japan
. 7-15 days shipping


Product Code: SVSX-M3-10-88-NBK
Qty:

Description

Hex Socket Head Cap Screws with Ventilation Hole - High Intensity S.S.
SVSX-M3-10-88 MBK
One Screw

Characteristics:
  • Made of high strength stainless steel (Strength class 8.8).
  • The ventilation hole easily releases gas trapped in the screw holes of equipment and machines, and supports vacuum drawing of vacuum devices.
  • Excellent heat resistance and corrosion resistance.
  • Nonmagnetic.
  • Application: Vacuum devices, vacuum chambers, FPD production equipment,semiconductor devices, and electron microscopes


<

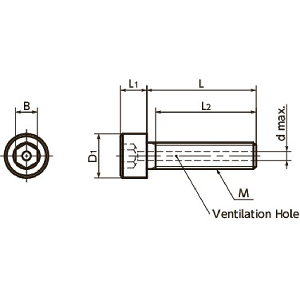

Part Number M
L D1 L1 L2 B d (max.)
SVSX-M3-10-88 m3 10mm 5.5mm 3mm Full Thread 2.5mm 1.2

SVSX-M3-10-88-NBK Hex Socket Head Cap Screws with Ventilation Hole - High Intensity stainless M3 length 10mm

SVSX-M3-10-88-NBK
