SNSI-M3-6 NBK Socket Head Cap Screw - Inconel equiv.- Made in Japan
SNSI-M3-6 NBK Socket Head Cap Screw - Inconel equiv.- Made in Japan

Alternative Views:
Our Price: $35.42
. Item: SNSI-M3-6 NBK
. Socket Head Cap Screw - Inconel equiv.
. Quantity : One Screw
. NBK Made in Japan
. 7-15 days shipping


Product Code: SNSI-M3-6-NBK
Qty:

Description

SNSI-M3-6 NBK Socket Head Cap Screw - Inconel equiv.
Made in Japan
One Screw

Characteristics:
  • Screws show excellent corrosion resistance against oxidizing and reducing by inorganic and organic acids.
  • Main Body: UNS N06600(Inconel: 1600 equiv.‹¬?
  • Excellent resistance to stress corrosion cracking caused by hydrogen sulfide ions.
  • Excellent heat resistance and creep resistance. High strength even near 600 deg C.
  • Nearly complete corrosion resistance against ammonia.
Application:

FPD production equipment, semiconductor devices, printed circuit boardetching devices, metallic surface treatment equipment and facilities,and chemical plants

Physical property:
  • Specific Gravity: 8.42
  • Specific heat (J/kg.K): 444
  • Longitudinal Elastic Modulus(GPa): 207
  • Linear expansion coefficient (K-1): 13.4x10-6
  • Thermal Conductivity ( w/(m.k) ): 16.7
  • Electric resistance ( m): 1.0

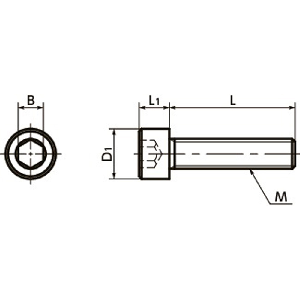

Part NumberMLD1L1BTension Rupture Load(N)*1Quantity Per Pack
SNSI-M3-6-NBKM36mm5.5mm3mm2.5mm2750 N1
*1: ???Values in chart are for reference only. They are not guaranteed values.

SNSI-M3-6 NBK Socket Head Cap Screw - Inconel equiv.Made in JapanOne Screw

SNSI-M3-6-NBK
