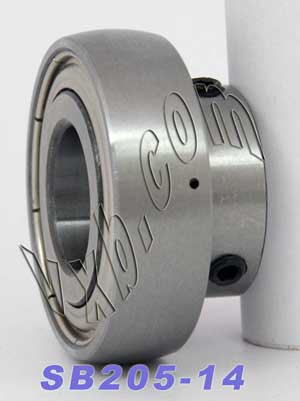

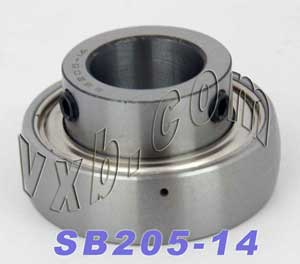

SB205-14 Bearing 7/8" inch Bore Insert Mounted Bearings

Our Price: $11.77

. Item: SB205-14 Ball Bearing
. Type: Ball Bearing Insert
. Quantity: One Bearing
. Basic Load (Cr): 3,152 LBS
. Basic Load (Cor): 1,765 LBS

Product Code: KIT12768

Qty:

Description

SB205-14 Ball Bearing Insert
bore (with set screws)
7/8" inch Inner Diameter Bearing

SB205-14 Ball Bearing Insert, bore (with set screws).The inner diameter is 7/8" inch, the outer diameter is 2.047" inch and the width is 1-1/16" inch.

Item: SB205-14 Ball Bearing
Type: Ball Bearing Insert
Quantity: One Bearing
Basic Load (Cr): 3,152 LBS
Basic Load (Cor): 1,765 LBS

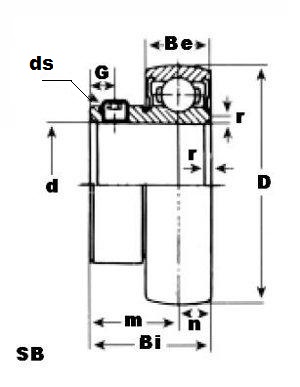

Dimensions (inches)
d	D	Bi	Be	r	n	m	G	ds
7/8"	2.047"	1-1/16"	19/32"	0.059"	19/64"	49/64"	0.217"	10-32mm
