NBK Made in Japan KWBS-21-M5-20-SC Wing Knob with Captive Mechanism
NBK Made in Japan KWBS-21-M5-20-SC Wing Knob with Captive Mechanism

Alternative Views:
Our Price: $14.52
. Item: NBK Made in Japan KWBS-21-M5-20-SC Wing Knob with Captive Mechanism
. Made in Japan
. Material: Stainless steel SUSXM7
. Quantity: One
. 7-15 days shipping


Product Code: KWBS-21-M5-20-SC-NBK
Qty:

Description


NBK Made in Japan KWBS-21-M5-20-SC
Wing Knob with Captive Mechanism


NBK Japan KWBS-21-M5-20-SCWing Knob with Captive Mechanism

  • Captive type wing knob. Prevents fall-off and loss of the knob.
  • Foreign matter entry countermeasures in food processing machinery and so on, as well as CE marking support (⇒Use the NBK Captive Screw Series to be comply with CE ).
  • Made of stainless steel superior in corrosion resistance.
  • The shape allows easy operation and application of force.


Part number M (course) D Lm H L d1
KWBS-21-M5-20-SC M5 21mm 6mm 11mm 20mm 3.9mm

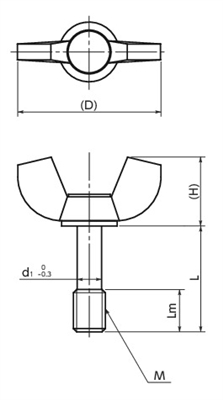

KWBS Dimension Figure
