NBK Made in Japan BRPSS-5-S Set Screw Type Ball Transfer Unit with Spring Plunger Function for Upward Facing Applications
NBK Made in Japan BRPSS-5-S Set Screw Type Ball Transfer Unit with Spring Plunger Function for Upward Facing Applications

Our Price: $21.90
. Item: BRPSS-5-S
. Set Screw Type Ball Transfer Unit
. Main Body Material: Stainless Steel
. Main Ball Material: Stainless Steel
. 7-15 days shipping


Product Code: BRPSS-5-S-NBK
Qty:

Description

BRPSS-5-S Set Screw Type Ball Transfer Unit
with Spring Plunger Function for Upward Facing Applications


BRPSS-5-S is a set screw type ball roller with spring plunger function. The internal spring receives loads evenly even when the load is unbalanced. BRPSS-5-S can also be used as a general spring plunger with ball for fixing and locating the work piece. The smooth rotation of the ball reduces friction between the main ball and receiving side. It has a drain hole and is intended for food production lines and other applications that require cleaning.
Quantity: One

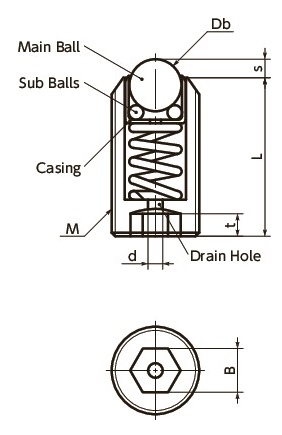

Part Number M L s Db B t d Withstand Load (N) Quantity per Pack
BRPSS-5-S M5 12 0.7 2.38 2.5 2 1.2 4.4/19.6 1
