NATB5903 Needle Roller Bearing with 3-Point Contact Ball Bearing 17X30X20mm

Alternative Views:

Our Price: $33.75

. Item: NATB5903 Roller Bearing
. Type: Needle Roller Bearing
. Dimensions: 17mm x 30mm x 20mm
. ID (inner diameter)/Bore: 17mm
. OD (outer diameter): 30mm

Product Code: NATB5903

Qty:

Description

NATB5903 Needle Roller Bearing
with 3-Point Contact Ball Bearing
17mm X 30mm X 20mm
VXB Bearing

NATB5903 is a combined Needle Roller Bearing with 3-Point Contact Ball Bearing 17X30X20mm combined bearing type, needle roller bearing with angular contact thrust bearing, the NATB5903 inner diameter is 17mm, the outer diameter is 30mm, width of the cone (inner ring) is 20mm.

Item: Needle roller bearing combined with angular contact thrust bearing

Dimensions Standard: Metric

Brand: VXB

Dimensions: 17X30X20mm

ID (inner diameter)/Bore: 17mm

OD (outer diameter): 30mm

Width/Height/thickness: 20mm

Type: Needle Roller Bearing NATB5903

Quantity: One Bearing

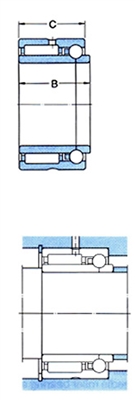

d	D	B	C	F	r12 min.	da min.	Da max.	ra max	C	C0
17mm	30mm	20mm	18mm	22mm	0.3mm	19mm	28mm	0.3mm	11.4 KN	16.3 KN

NATB5903 Needle Roller Bearing w 3-Point Contact Ball Bearing 17X30X20mm

NATB5903
