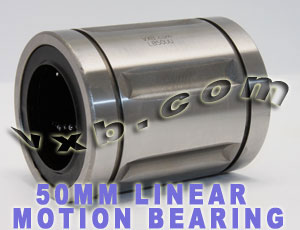

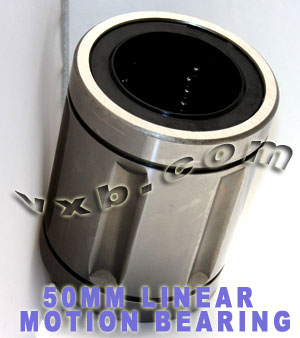

LB50UU 50mm Ball Bushing 50x80x100 Linear Motion Bearings
LB50UU 50mm Ball Bushing 50x80x100 Linear Motion Bearings

Our Price: $48.73
. Item: LB50UU Bearing
. Type: Linear Ball Bushing
. Ball circuit: 6
. Size: 50 x 80 x 100 mm
. Quantity: One Bearing


Product Code: KIT12131
Qty:

Description

Linear Ball Bushings LB50UU
Works with 50mm Shafts
50mm x 80mm x 100mm


LB50UU
LB50UU
 LB50UU Linear Ball Bushing works with a 50mm Shafts, Size is 50mm x 80mm x 100mm, the inner Diameter is 50mm, the outer Diameter is 80mm and the Length is 100mm.
  • Item: LB50UU Bearing
  • Type: Linear Ball Bushing
  • Ball circuit: 6
  • Size: 50 x 80 x 100 mm
  • Quantity: One Bearing
  • Dynamic load rating Cr: 3,820 N
  • Static load rating Cor: 7,940 N
LB50UU

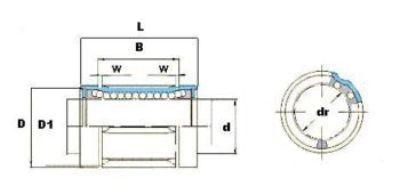

Major dimensions
and tolerance (mm)
Eccentricity
Radial clearance
(mm)
dDLBWD1h1Precision
(mm)		High
(mm)
mmtolerancemmtolerancemmtolerancemmtolerance
PrecisionHigh
500-80-12800-191000-300740-300
