GER209-27-ZSFF Insert GRIP-IT 360 Degree 1 11/16" Inch Bearing
GER209-27-ZSFF Insert GRIP-IT 360 Degree 1 11/16" Inch Bearing

Our Price: $288.64
. Item: GER209-27-ZSFF Bearing
. Type: Bearing Insert
. Shaft Diameter: 1 11/16" Inch
. Dynamic Load Rating: 32695 N
. Static Load Rating: 18460 N


Product Code: KIT19360
Qty:

Description

This item will be shipped within One Week
Returns Subject to 15% restocking Fee

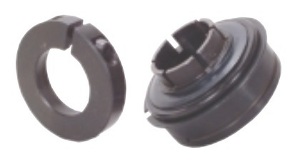

GER209-27-ZSFF Bearing Insert GRIP-IT 360 Degree Locking
Set Screw Locking
1 11/16" Inch Inner Diameter


GER209-27-ZSFF Bearing Insert GRIP-IT 360 Degree Locking:1 11/16 Inch inner diameter: Ball Bearings
GER209-27-ZSFF Bearing Insert GRIP-IT 360 Degree Locking:1 11/16 Inch inner diameter: Ball Bearings

GER209-27-ZSFF Bearing Insert GRIP-IT 360 Degree Locking, bearing is standard load capacity, bearing is Wide inner ring with Cylindrical outer ring and snap ring, bearing has relubrication groove with oil hole on side opposite of locking callar, bearing is black oxide plated inner and outer rings, bearing is nylon patched class 3A set screw, Standard seal is R-seal.

  • Item: GER209-27-ZSFF Bearing
  • Type: Bearing Insert
  • Shaft Diameter: 1 11/16" Inch
  • Dynamic Load Rating: 32695 N
  • Static Load Rating: 18460 N
  • Quantity: One Bearing
  • Ball Bearing


Dimensions (Inches)
D Bi Be L n m E W1 J T Y K W ds (UNF-Thread)
3-11/32" 1-15/16" 1-3/32" 2-1/8" 3/4" 1-3/16" 57/64" 2.256" 1/8" 5/64" 3-39/64" 29/64" 2-15/16" 10-24x3/4
