Female Rod End Heim 3mm PHS3L Left hand Bearing

Our Price: $4.95

. Item: PHS3L Bearings
. Type: Rod Ends Heim Joints Bearing
. Quantity: One Bearing
. Dynamic load Capacity: 170 KGF
. Static load Capacity: 190 KGF

Product Code: PHS3L

Qty:

Description

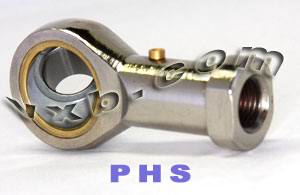

Female Rod End PHS3L
One Left Hand

One Left Hand Female Rod End PHS3L Works with 3mm Shafts, inner diameter is 3mm, the internal thread size is M3x0.5, Here is the interchange designation in every brand:

Item: PHS3L Bearings
Type: Rod Ends Heim Joints Bearing
Quantity: One Bearing
Dynamic load Capacity: 170 KGF
Static load Capacity: 190 KGF

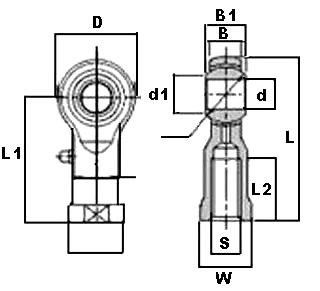

Dimensions (mm)
d	Thread S	D	B	B1	d1	L	L1	L2
3	M3x0.5	12	4.5	6	9	33	36	27
